Luxe Luxury Fifth Wheel Construction

Luxe Fifth Wheels are built for full-time use with industry-leading construction that sets the standard for durability, strength and luxury.

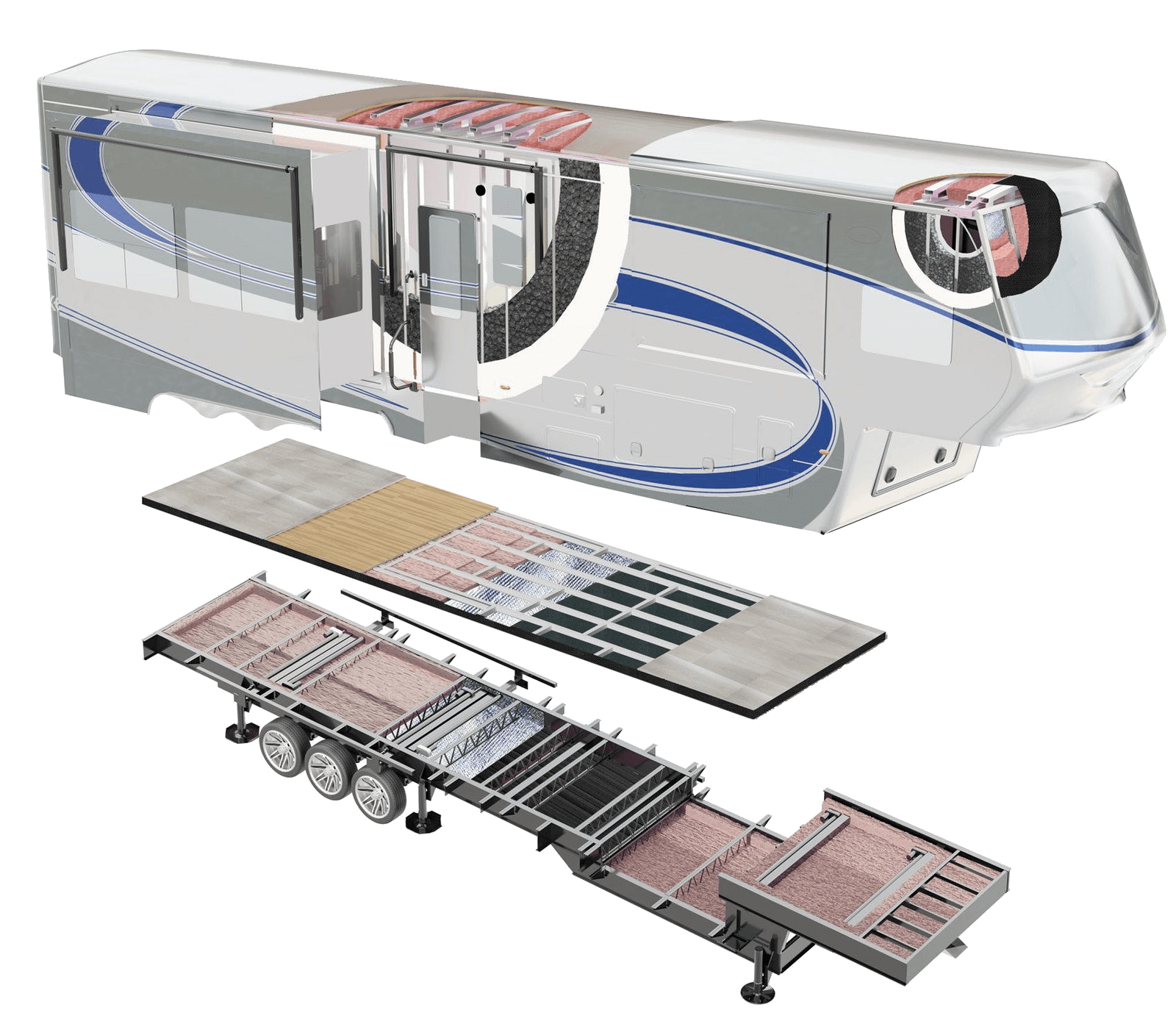

Luxe Fifth Wheel cutaway showing chassis, floor, and wall construction with independent suspension
1
  • Welded Aluminum Trusses - 16'' on Center
  • Insulated with a radiant barrier and batting insulation
  • 1/2'' Marine Grade Plywood
  • SuperFlex Roof Material
2

Our front cap is a one piece fiberglass cap.

Underneath we have these components:

  • Welded cage construction
  • Radiant barrier insulation
  • 2 layers of batting insulation
  • Darco waterproof moisture barrier
3

High-Gage Aluminum Welded Cage wall construction.

4
Luxe Fifth Wheel Super Composite Wall with 2.5" graphite insulation construction
5

We use the same construction and insulation as our main walls.

6

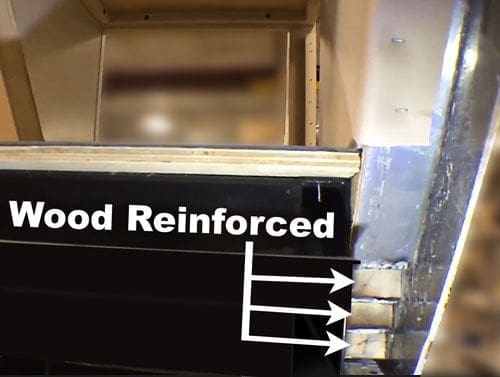

Luxe Fifth Wheel wood reinforced wall frame construction for superior durability

All stress points have been reinforced with wood inserted into the aluminum square tubing.

7

Layers

  • Darco waterproof material
  • Radiant barrier
  • 2 Layers of batting insulation
  • 5/8″ Tongue and groove marine grade plywood
  • Hand laid tile
8

We add a Tire Guard Flashing underneath this area of the 3″ floor to safeguard the floor from possible road debris or the event of a tire blowout.

9
  • Radiant barrier, lined on sides and bottom
  • 2 Layers of batting insulation
  • Thick corrugated plastic underbelly
  • 3 Forms of heat
  • Radiant heat from all the ductwork
  • Forced heat from ducting
  • Heat pads on all holding tanks
10

Doubled Outriggers Around Slide-Outs

We place these double outriggers on both sides of the slide outs to bolt the floor onto. This ads strength and stability when the slides are extended.

11

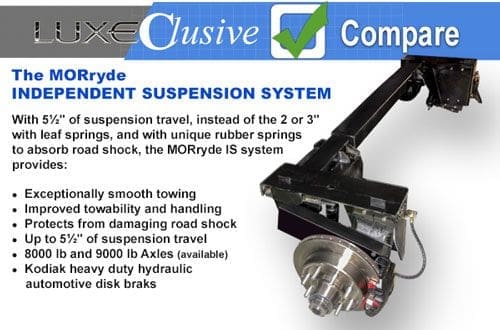

Luxe Fifth Wheel MORryde IS3 independent suspension system for luxury fifth wheels
12

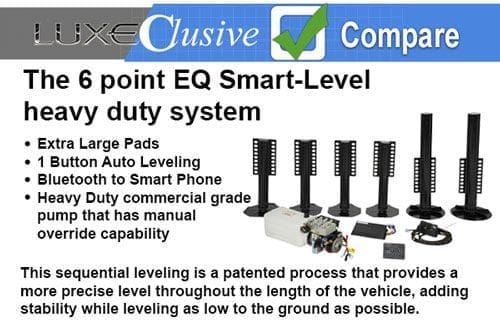

Luxe Fifth Wheel 6-point EQ Smart-Level heavy-duty leveling system

Want More about our Construction?

Name(Required)
State(Required)
Non-Marketing SMS Consent Checkbox
Marketing SMS Consent Checkbox

Luxury Fifth Wheel Quality

When you are doing your research on the construction of a luxury fifth wheel, make sure you take a look at these construction highlights. Make notes and compare features. We also encourage you to take a private factory tour to see first hand the quality built into a Luxe Luxury Fifth Wheel. Schedule your private tour here.

Every Luxe Luxury Fifth Wheel is Built with Top-Tier Materials

  • 3″ Super Composite Welded Aluminum Cage Walls with 2.5″ Graphite-Infused Closed-Cell Insulation
  • 12″ Forged Steel Powder-Coated I-Beam, reinforced with 2×2″ Stackable Box Tube
  • 14″ Outriggers, with double outriggers around slide-outs for added strength
  • 3″ Thick Floors, welded 16″ on center for superior support
  • 5/8″ Tongue & Groove Plywood Flooring for durability and stability
  • 16″ On-Center Welded Roof Trusses for unmatched structural integrity
  • 1/2″ Plywood Roofing for enhanced strength and longevity
  • SoftTouch Sidewalls – Exclusive to Luxe Elite Fifth Wheels
  • SoftTouch Ceilings, including slide-out ceilings for a premium finish
  • Reinforced 5/8″ Plywood for fresh, gray, and black tanks, providing additional support
  • Seamless 1-Piece SuperFlex Membrane Roofing with a 15-year warranty
  • Frameless Thermopane Windows for a sleek look and superior insulation
  • Thermal Pack Insulation Throughout – Roofing, flooring, and chassis underbelly
  • Residential Fiberglass Insulation Throughout – Maximizing climate control efficiency
  • Forced Furnace Air into Enclosed Underbelly for true four-season performance
Luxe Elite 42RL luxury fifth wheel with slide-outs, independent suspension, and residential entry door
Luxe Elite luxury fifth wheel RV hitched to a truck, showcasing full-body paint and slide-outs

Luxe Fifth Wheel | Top-Tier Quality | Many Levels Better

Luxe goes beyond RV industry standards, delivering unmatched quality at every level

EXTERIOR PAINT

LUXE TIER 1

Wet Sand & Buff – Full Automotive Paint – Triple Clear Coat

The Rest of the RV Industry
Tier 2 – Full paint
Tier 3 – One coat, no clear coat
Tier 4 – Painted stripes
Tier 5 – Painted cap, dyed fiberglass, decals
Tier 6 – No paint, just decals

SIDE WALL CONSTRUCTION

LUXE TIER 1

3″ Vacuum Bonded High Gloss Gel Coat Fiberglass

The Rest of the RV Industry
Tier 2 – screwed & glued aluminum – hung fiberglass wall – loose fiberglass insulation
Tier 3 – 11/2″ tubular welded – white polystyrene insulation
Tier 4 – wood studs – loose fiberglass insulation – hung metal

ROOF CONSTRUCTION

LUXE TIER 1

Welded Aluminum Trusses -16″ on Center

The Rest of the RV Industry
Tier 2 – screwed aluminum trusses – plywood decking
Tier 3 – screwed aluminum trusses – OSB decking
Tier 4 – wood trusses – OSB decking

INDEPENDENT SUSPENSION

LUXE TIER 1

MORryde Independent Suspension | Hydraulic Brakes

LUXE TIER 2

Dexter Torflex Independent Suspension | Hydraulic Brakes

The Rest of the RV Industry
Tier 3 – Dexter independent torsion axles, electric brakes
Tier 4 – Spring suspension, hydraulic brakes
Tier 5 – Spring suspension, cheap spring dampener
Tier 6 – Spring suspension, electric brakes

Luxe Regent luxury fifth wheel RV with black and white full-body paint and slide-outs
Luxe Fifth Wheel luxury RV interior with Brazilian Walnut cabinetry, kitchen, and entertainment center
Luxe luxury fifth wheel RV being towed by a black truck, showcasing full-body paint and slide-outs
Luxe Fifth Wheel Toy Hauler independent suspension system and tires on asphalt
