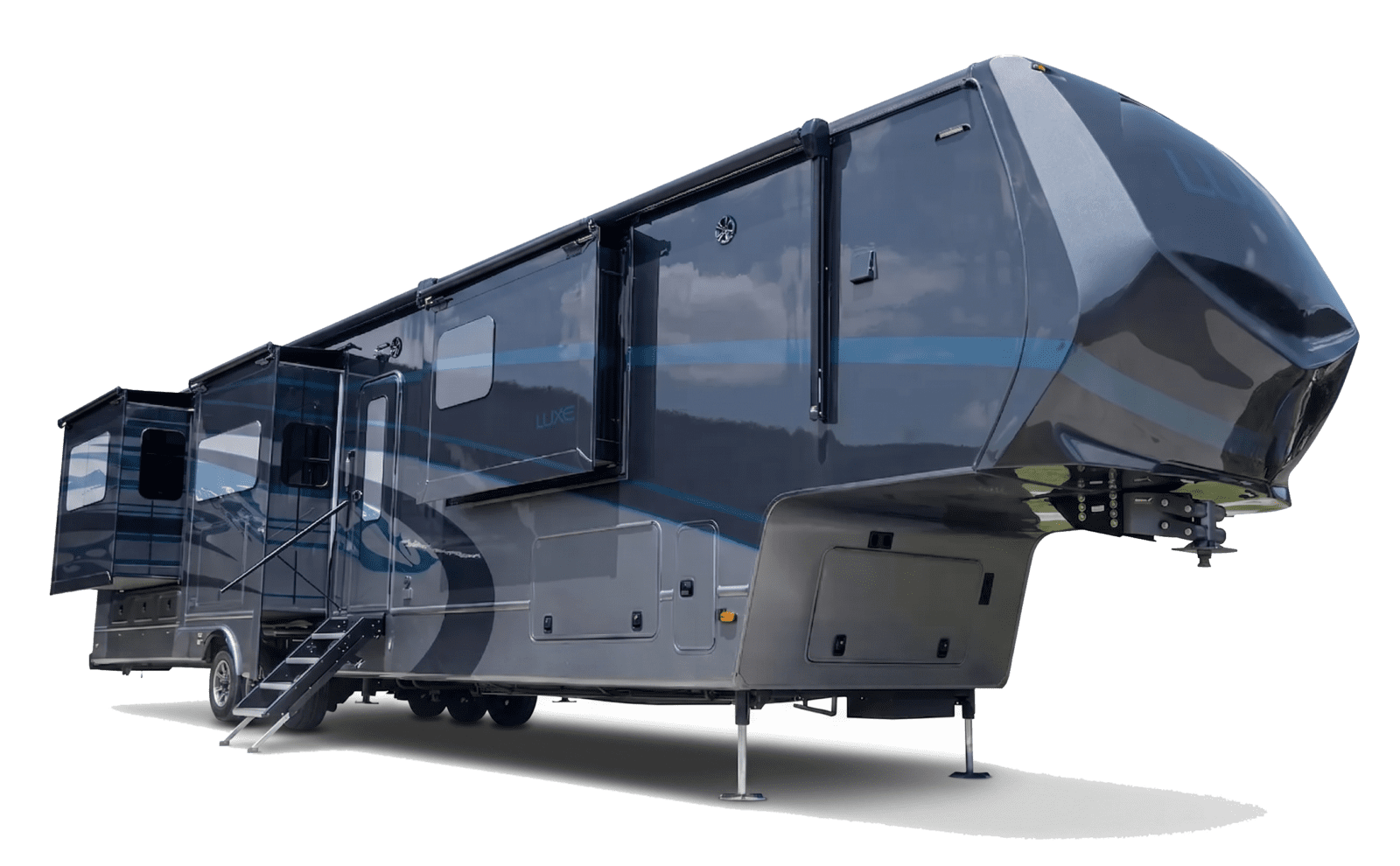

Luxe Elite Fifth Wheel
The Best Constructed Luxury Fifth Wheel
High End Elite
Are you Interested in our Elite Fifth Wheel?

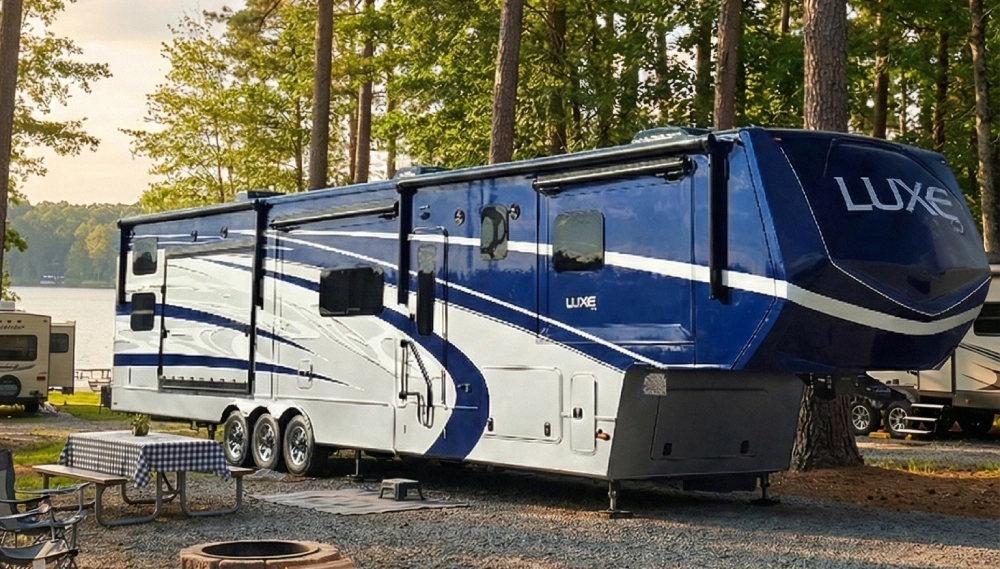

Luxe Elite
The Luxe Elite Fifth Wheels are a class of their own with industry-leading construction, residential appliances, and luxurious modern conveniences all geared toward true full time living.
Below are our floorplans for the Luxe Elite Fifth Wheels series; The Best Constructed Luxury Fifth Wheel. Scroll through specifications, pictures, and videos and take a virtual walk through each floorplan to see which fits your needs. After using our builder tool to personalize your very own Luxe Fifth Wheel.
LUXE is here to answer every question about our luxury fifth wheels. If you have any questions give us a call (844)284-6678.
Luxe Elite Floor Plans

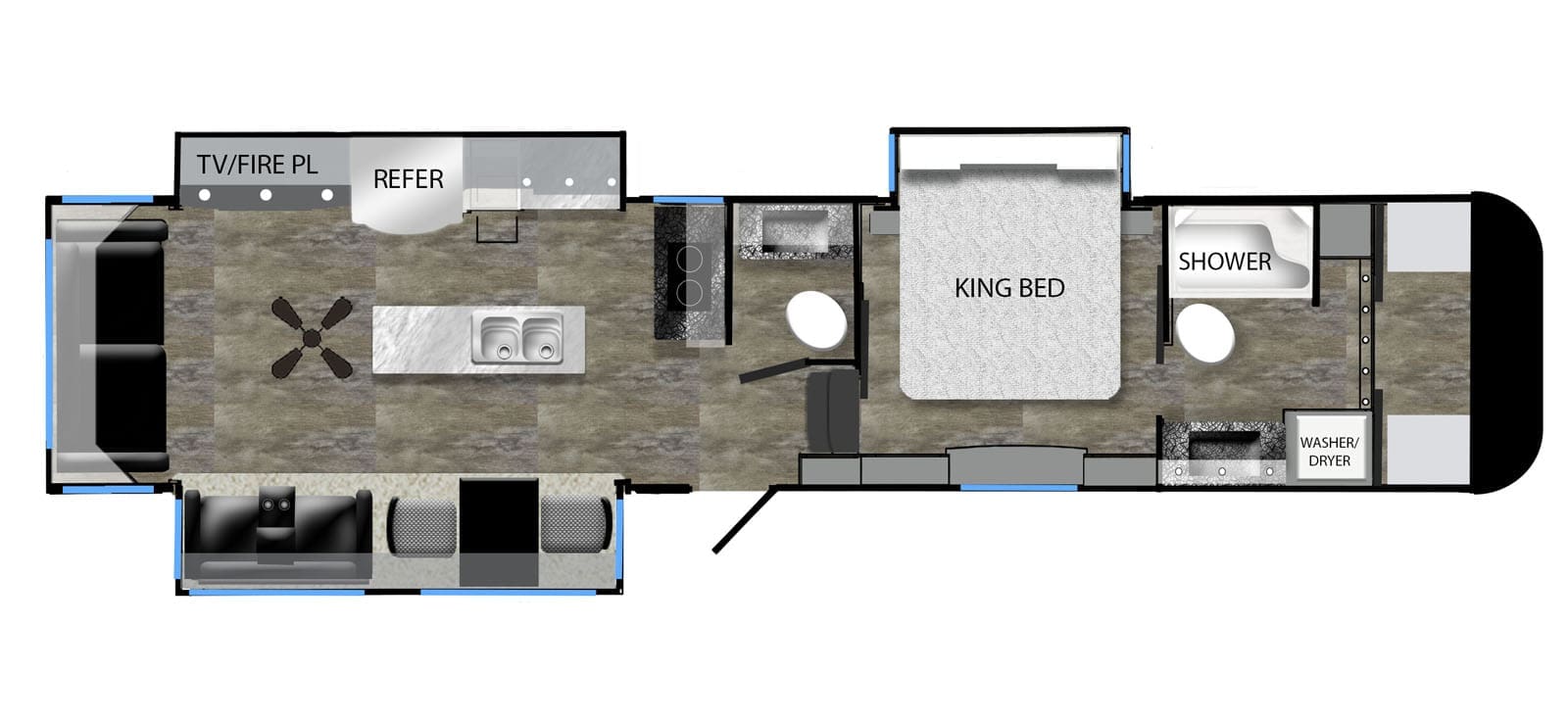

39FB

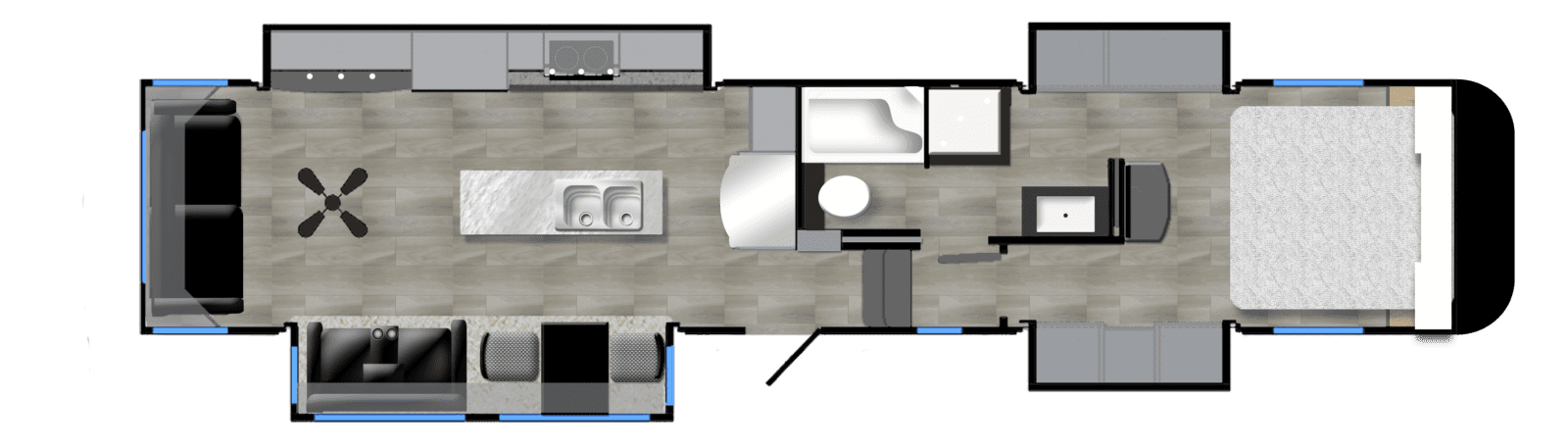

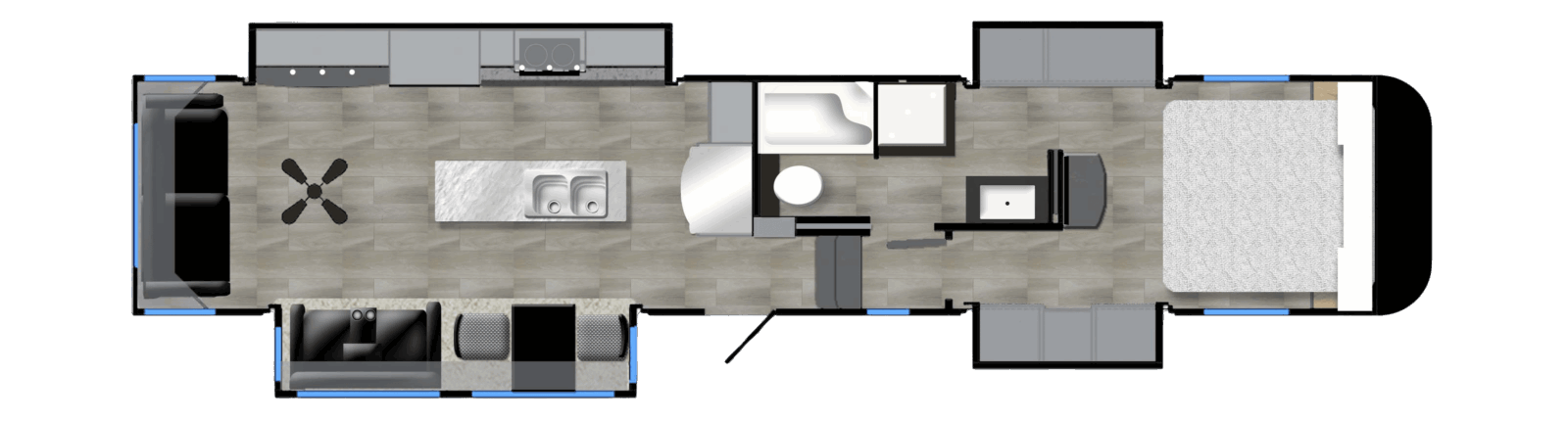

42RL

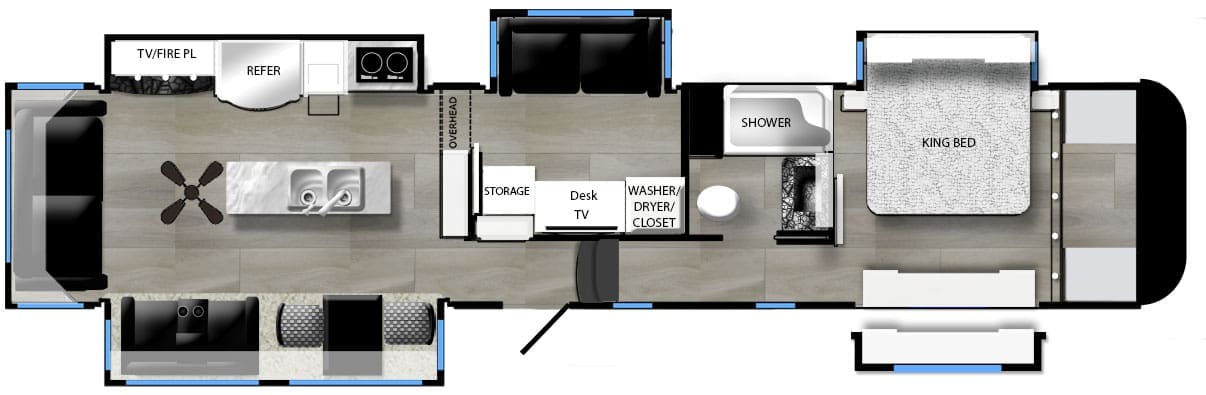

42MD
46RKB
46TB
| GVWR (lbs) | 24,000 |
| Est UVW | 18,000 |
| Est Hitch Weight | 3,900 |
| Length | 40′ 10″ |
Our length measurements are taken from the pin to the rear cap.
| Height | 13′ 3″ |
| Grey (gal) | 80 |
| Black (gal) | 80 |
| Fresh (gal) | 100 |
Videos
Photos
360° View
| GVWR (lbs) | 24,000 |
| Est UVW | 19,800 |
| Est Hitch Weight | 4,700 |
| Length | 43′ 10″ |
Our length measurements are taken from the pin to the rear cap.
| Height | 13′ 3″ |
| Grey (gal) | 80 |
| Black (gal) | 40 |
| Fresh (gal) | 100 |
Videos
Photos
360° View
| GVWR (lbs) | 24,000 |
| Est UVW | 20,000 |
| Est Hitch Weight | 4,800 |
| Length | 43′ 2″ |
Our length measurements are taken from the pin to the rear cap.
| Height | 13′ 3″ |
| Grey (gal) | 80 |
| Black (gal) | 40 |
| Fresh (gal) | 100 |
Videos
Photos
360° View

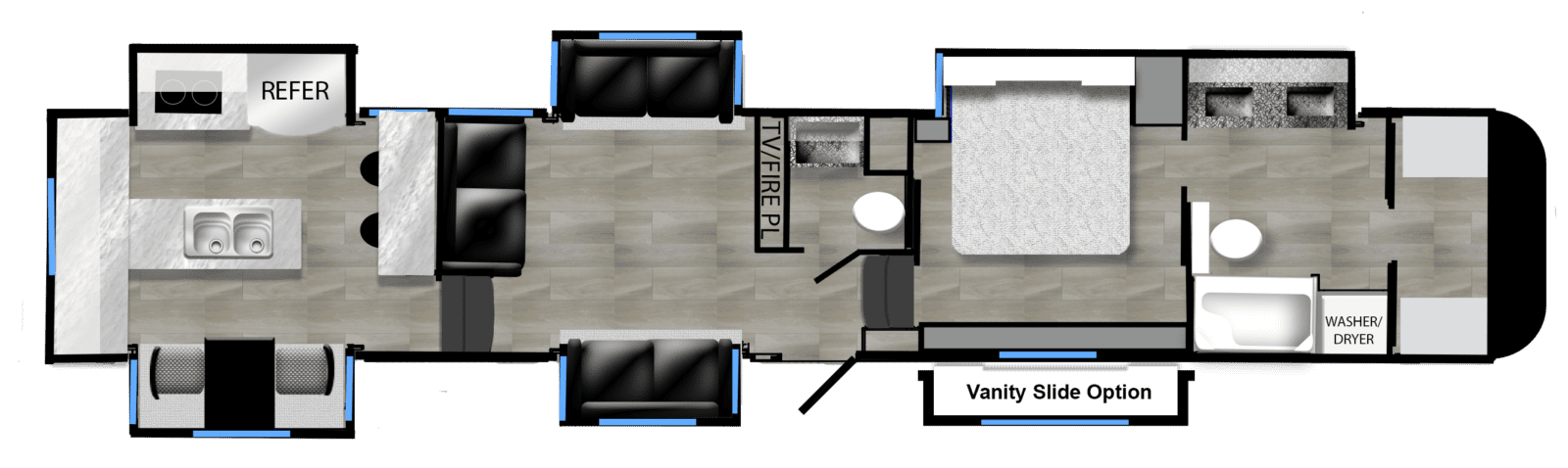

For more information and photos of our 46RKB, visit the 46RKB Floor Plan Page
| GVWR (lbs) | 27,000 |
| Est UVW (lbs) | 24,200 |
| Est Hitch Weight (lbs) | 4,900 |
| Length | 48′ |
Our length measurements are taken from the pin to the rear cap.
| Height | 13′ 3″ |
| Grey (gal) | 80 |
| Black (gal) | 80 |
| Fresh (gal) | 100 |
Videos
Photos
360° View

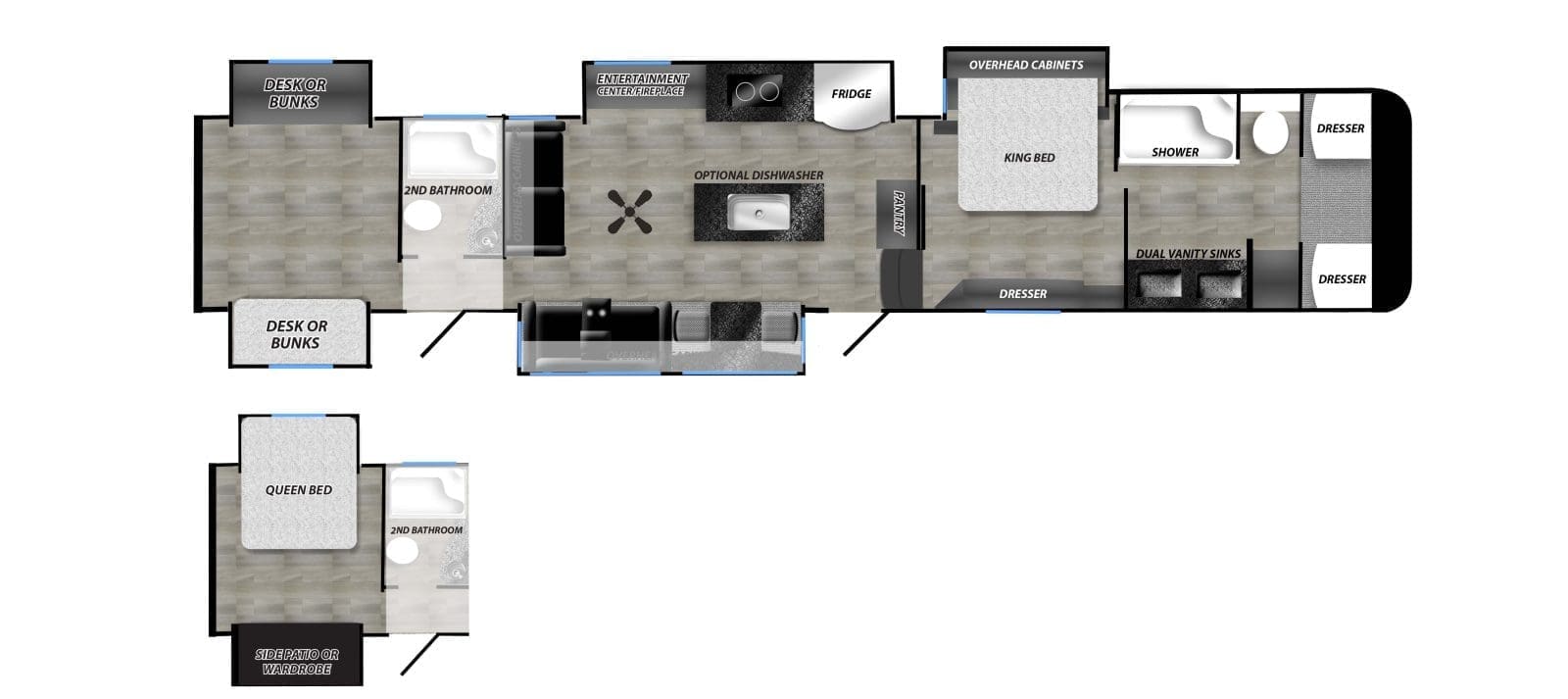

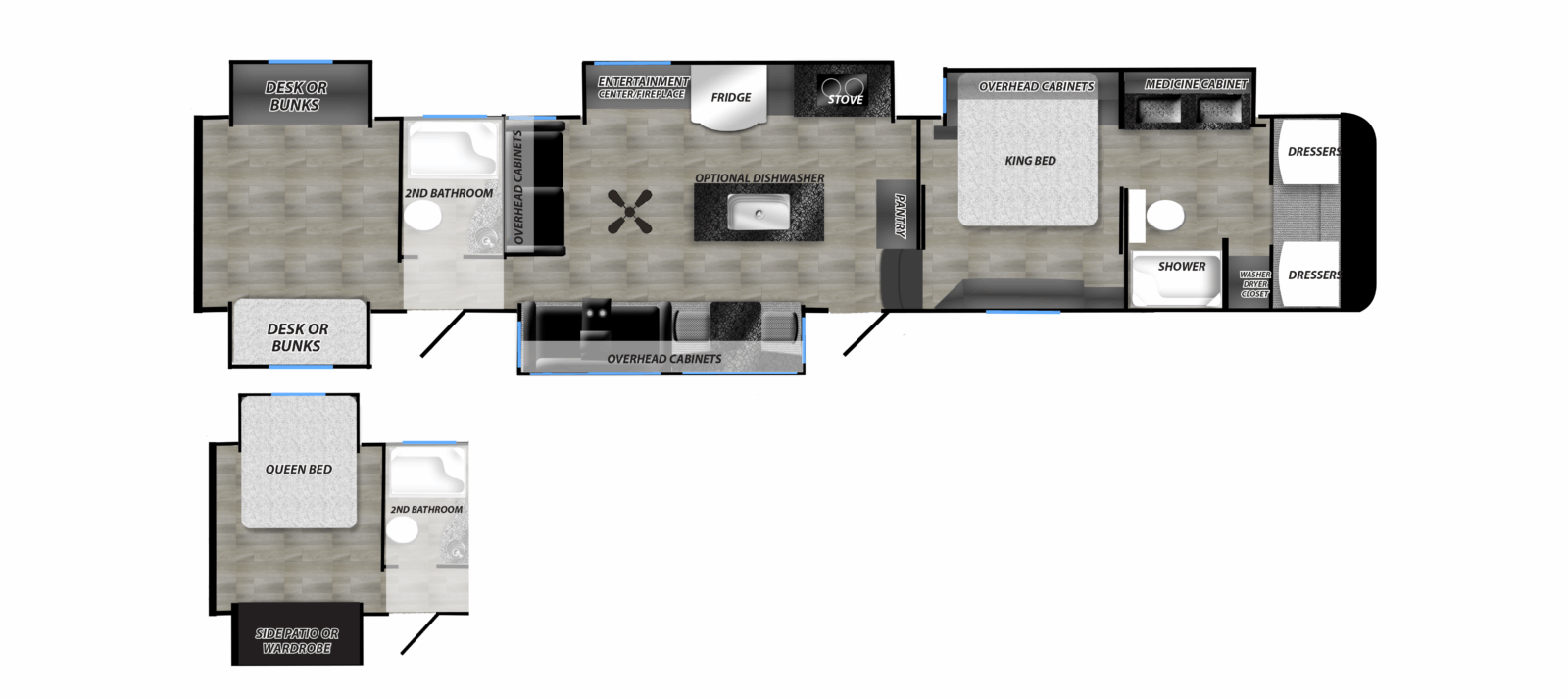

For more information and photos of our 46TB, visit the 46TB Two Bedroom Two Bathroom Floor Plan
| GVWR (lbs) | 28,000 |
| Est UVW (lbs) | TBD |
| Est Hitch Weight (lbs) | TBD |
| Length | 48’ |
Our length measurements are taken from the pin to the rear cap.
| Height | 13’ 3” |
| Grey (gal) | 80 (2 Tanks) |
| Black (gal) | 80 (2 Tanks) |
| Fresh (gal) | 100 |
Photos
Videos
360° View
The key to our luxurious Custom Cabinetry in the Luxe Fifth Wheel is the consistency of color and high-quality finish.
Mass producers in the RV industry use a combination of lower quality, builders grade hardwoods, mixed with manufactured pressed-wood, and printed paper products. In addition, these builders purchase various components with differing finish processes causing colors and esthetics to vary wildly in adjacent areas. These cheaper components frequently fade, change color, and show accelerated wear over time.
Luxe starts by purchasing high-quality Hardwoods of the same species. There is some variation in color with all Hardwoods this adds to the richness of using natural products. Luxe achieves its beautiful, high-quality consistent look by using the same hardwood and the same superior hand finish process thru-out the entire coach. Slide-out fascia and trims, to cabinet stiles, solid raised panel cabinet doors, and even solid hardwood interior passage doors, are consistently elegant. An added benefit is the years of long-lasting beauty and richness that is achieved.
Learn more about how Luxe Fifth Wheels are the best constructed fifth wheel in the industry by clicking Here
The Best Constructed Luxury Fifth Wheel
These walls are ultra-high-strength, with a polyurethane laminated, multi-layered construction, starting with an outer layer of thick Gel Coat fiberglass with an Azdel composite layer beneath, this is on top of aluminum welded cage, filled with a solid High Density closed cell graphite infused foam insulation. This insulation is shown to not retain or wick any moisture, degrade over time, mold, or mildew. This provides the maximum amount of insulation per inch of any product used in the industry. Even our slide-out sidewalls are insulated the same as our main walls. Many competitors will downgrade the insulation in their slide-outs to save on costs.
The Best Construction on Luxury Fifth Wheel Roofs
In the LUXE roof construction, high-density Fiberglass is used and is great for this horizontal application, considering the extra space there allows the full R-value of the product to be realized without compression. Fiberglass allows us to install wiring and insulated ductwork for the air conditioning system including return air while maintaining the serviceability of the systems.
Standard on all LUXE models are low profile whisper-quiet AC’s/Heat Pumps with a return air system, the quietest and most powerful in the industry. Claims of roof insulation by other manufacturers are grossly exaggerated, some claiming up to R-40 in a 6” roof, which is impossible. In part, claims are overstated on reflective materials used, these require large adjacent dead air spaces to achieve an increased R-Value, clearly not present in their roofs.
Learn more about the best constructed luxury fifth wheels here
