Luxe Elite
Construction
- True High Gloss Gel-Coat Fiberglass
- 3" Vacuum Bonded Super Composite Sidewalls
- 12" Extruded Steel, Powder Coated I-Beam Reinforced w/ 2x2" Stackable Box Tube
- 14" Outriggers
- Doubled Outriggers Around Slide-Outs
- 3" Thick Floors - Welded (16" on Center) - 5/8" Tongue & Groove Plywood Flooring
- Welded Roof Trusses(16" on Center ) - 3/8" Plywood Roof decking
- 3/8" Plywood Reinforcement for Fresh, Gray, & Black Tanks
- Seamless 1 Piece SuperFlex Roofing Material - 12 Year Warranty
- SUPERFLEX is a state-of-the-art roofing membrane engineered to provide premium performance for today’s demanding RV roof designs. SUPERFLEX Roofing Membrane is an Olefin-based single-ply membrane that is approximately half the weight of EPDM. SUPERFLEX Roofing Membrane is very stretchable and conforms to the multiple contours of today’s RV’s in a clean, chalk-free non-fade membrane.
Towing & Leveling
- Mor/Ryde Independent Suspension
- Equivalent to 8,000 lb Axles, 9,000lb on 39FB
- Laser Alignment
- Mor/Ryde Hitch Pin
- Hydraulic Disc Brakes - Kodiak
- 17.5" Goodyear H-Rated Tires
- Equalizer Hydraulic 6-Point Auto Leveling System - Jacks at 5 Degree Outboard Angle
- Electric Slide Motors
Insulation
- Frameless Thermopane Windows
- Thermal Star 2.5" Graphite infused, closed-cell block foam insulation (sidewalls)
- Thermal Pack Insulation Throughout (Roofing Flooring, Caps and Chassis Underbelly)
- Residential Fiberglass Insulation Throughout (Roofing, Flooring, Caps and Chassis Underbelly)
Heating, Ventilation, and A/C
- Forced Furnace Air into Enclosed Underbelly
- 2-20,000 BTU Furnaces
- 5,000 BTU Fireplace
- 2 or 3 15,000 BTU Whisper Quiet AC's ( dual zoned)
- 10 Gallon Hot Water Heater w/ 16 Gallon EFF
- Above the floor, Heat Ducts run through custom cabinetry
- 12 V Heat Pads on All Tanks
Electrical
- 50 Amp Service
- 75 Amp Converter
- 2,000 Watt Inverter
- 110 Volt USB Combo Outlets - The Most in the 5th Wheel Industry
- Central Command Center
- Multiplex Lighting System-Control
- Solar Prep to roof
Entertainment
- 49" LED HD Smart TV - Living Room with hidden storage shelves behind
- 40" LED HD Smart TV - Bedroom
- LG Bluetooth Surround Soundbar w/ Subwoofer
- Blu-Ray Players
- Satellite Prep
- Living & Bedroom
- Satellite Prep in Convenience Compartment
- HD Roof Direct TV Satellite Prep
- Winegard Razar HD Automatic Antenna
Exterior
- Full Body Paint Job w/ 2 Clear Coats & Wet Sand Buff
- 78" Friction Hinged Entrance Door
- Power Alum. Wrapped Weather Guard Awning w/ LED Light Strip
- Aerodynamic one-piece Fiberglass Front & Rear Caps w/ LED Lighting
- Aluminum Wrapped & Painted Roof Protector
- Light Up Luxe Exterior Grab Handle
- Marine Grade Weather Proof Exterior Jensen Bluetooth Stereo System
- Spare tire w/ carrier mount
- Rear Ladder
- Dual 40lb LP Tanks w/ Large Access Doors
- Easy Access Light Switches for Basement Pass-Through Storage
- 4 Additional Exterior Storage Compartments
- Washable Diamond Plate Compartment Liner
- 360 Siphon Vent on Black Tank
- See level tank monitoring wired for Back-Up Camera
- LED Exterior Marker Lights
- LED Exterior Tail Lights
- LED Hitch Hook Up Light
- Manual Aluminum entry stair
Interior
- Residential Hardware
- Soft Close Dovetail Drawers w/ Under Mount Drawer Guides
- Dovetail Silverware Drawer
- Soft-Touch Ceilings throughout
- Soft-Touch Sidewalls
- Individually Hand Laid Tile (16" x24") Flooring Throughout
- Marine-grade Bathroom Flooring - Resistant to Molds, Stains
- Residential Rebound Carpet w/ R2X Stain Guard & Rebound Carpet Pad
- Free Standing Table & Chairs w/ Leaf
- LED Interior Recessed Lights - All Lights Have Dimming Capabilities
- Day/Night Roller Shades Throughout
- Residential Sofa w/ Queen Sleeper Bed
- Residential Theater Seating
- Induction Cooktop - 2 Burner
- Water Filtration System - Whole Coach
- Stainless Steel 21 Cubic Ft Residential French Door Refrigerator
- Stainless Steel Convection Microwave
- Solid Surface Countertops w/ Kitchen Cell Phone Charging Station
- Deep Set Stainless Steel Double Kitchen Sink
- 1" Hand Laid & Grouted Tile Backsplash in Kitchen
- Residential Goose Neck Faucet w/ Pull-Out Sprayer
- LED Toe Kick Lights on Kitchen Island
- Fan-Tastic Vent Fans in Kitchen & Bathroom
- Washer/Dryer Prep
- I-Rest Cool Gel King Bed (72" x 80") - Full Storage Under Bed Base
- Over The Bed Directional Reading Lights
- One Piece Fiberglass Shower - Rainfall Glass Shower door
- Skylight Above Shower
- Porcelain Toilets
- Stainless Steel Towel Hooks
- Oversized Waterfall Bathroom Sinks
- Luxury Bedding Set
- All Hardwood Maple Residential Cabinetry
- Maple Hardwood Fascia & Stiles
- Maple Hardwood Trim & Crown Molding
- Maple Hardwood Engraved Luxe Door Header
Best 5th Wheel for Full Time Living - Luxury full time 5th wheels - Luxury Fifth Wheel Camper
|
The Luxe Elite luxury fifth wheel has a unique construction that fully insulates the chassis, walls, and roof. Our chassis is insulated with 2 barriers of insulation and has 3 ways of heating the underbelly. The walls are a Super Composite construction that is strong, lightweight, fire retardant and water-resistant. The roof is also insulated and has HVAC ducted heating and cooling. These units are Luxury full time fifth wheels. |
Luxe Elite Special Features
|
Construction
Each Luxe has a Wall Construction of a 3" thick Super Composite welded aluminum cage walls with 2.5 graphite infused closed cell insulation. This gives the unit a more residential construction approach as well as a sidewall that is stronger, lighter and will stand the test of time.
Multiplex lighting and soft-touch sidewalls are standard on the Luxe. The Luxe 5/8 tongue and groove flooring and 3/8 plywood ceiling come standard with hand-laid tile flooring, pairing high performance and durability throughout to achieve a level of luxury above the rest.
|
Construction
|
|
Insulation
***Tested for 10 Degrees Below 0 and 115 Degrees Above 0*** |
Cabinetry
The key to our luxurious Custom Cabinetry in the Luxe fifth-wheel is the consistency of color and high-quality finish.
Mass producers in the RV industry use a combination of lower quality, builders grade hardwoods, mixed with manufactured pressed-wood and printed paper products. In addition, these builders purchase various components with differing finish processes causing colors and esthetics to vary wildly in adjacent areas. These cheaper components frequently fade, change color, and show accelerated wear over time.
Luxe starts by purchasing high-quality Hardwoods of the same species. There is some variation in color with all Hardwoods this adds to the richness of using natural products. Luxe achieves its beautiful, high-quality consistent look by using the same hardwood and the same superior hand finish process thru-out the entire coach. Slide-out fascia and trims, to cabinet stiles, solid raised panel cabinet doors, and even solid hardwood interior passage doors, are consistently elegant. An added benefit is the years of long-lasting beauty and richness that is achieved.

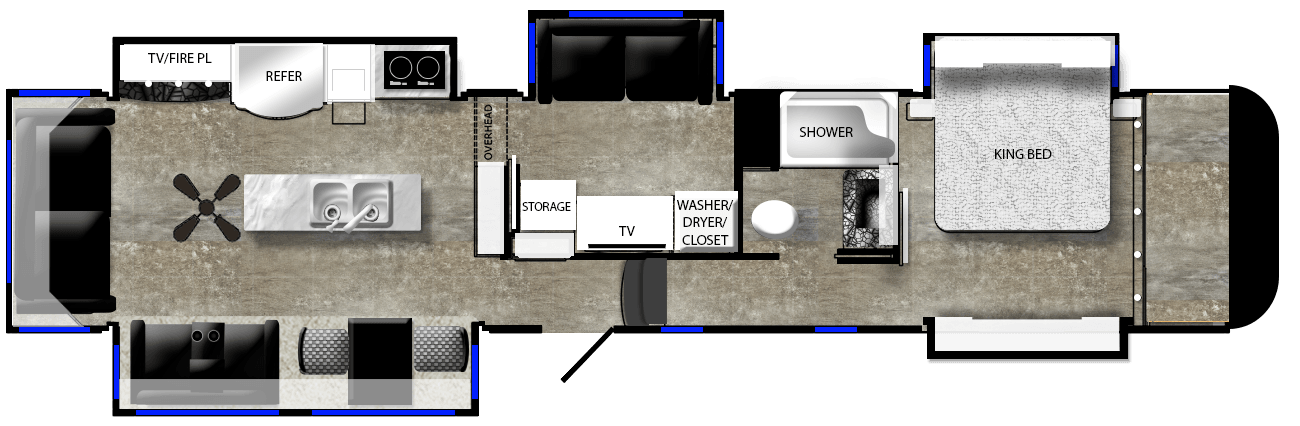

Floor Plans
- GVWR (lbs) 24,000
- Est UVW 18,000
- Est Hitch Weight 3,900
- Exterior Length: 40′ 10″
- Exterior Height w/AC(ft): 13′ 6″
- Exterior Width W/Awning (inches): 111″
- Fresh Tank Capacity (gal): 100
- Black Tank Capacity (gal): 80
- Gray Tank Capacity (gal): 40 x 2
- L.P. Gas Capacity (lbs): 80
- Mor/Ryde Independent Suspension (lbs): 9000 x 2
- Kodiak Automotive Disc Brakes
- Goodyear H-Rated Tires (inches): 17.5″
- Wall Construction: 3" Super Composite welded aluminum cage walls with 2.5 graphite infused closed cell insulation
- Floor - 3" thick welded insulated aluminum cage construction with tung and grove 5/8" plywood. Hand laid vinyl tiling.
- Number of Slide Rooms: 3
- Awning Size (ft): 19′
- Water Heater: 10 Gallon (6 Gallon Rapid Recovery)
- Furnace: Two 20,000 BTU
- Fireplace: 5,000 BTU
- Whisper Quiet A/C: Two 15,000 BTU
- Refrigerator: 20.7 CU
- Microwave: 1.6 CU
- Electric: 50 Amp Service
- Converter: 75 Amp
- Inverter: 2000 Watt
- King Bed Size: 72″ x 80″
- Generator Prep: Optional
- GVWR (lbs) 24,000
- Est UVW 19,000
- Est Hitch Weight 4,500
- Exterior Length: 43′ 10″
- Exterior Height w/AC(ft): 13′ 6″
- Exterior Width W/Awning (inches): 111″
- Fresh Tank Capacity (gal): 100
- Black Tank Capacity (gal): 40
- Gray Tank Capacity (gal): 40 x 2
- L.P. Gas Capacity (lbs): 80
- Mor/Ryde Independent Suspension (lbs): 8000 x 3
- Kodiak Automotive Disc Brakes
- Goodyear H-Rated Tires (inches): 17.5″
- Wall Construction: 3" Super Composite welded aluminum cage walls with 2.5 graphite infused closed cell insulation
- Floor - 3" thick welded insulated aluminum cage construction with tung and grove 5/8" plywood. Hand laid vinyl tiling.
- Number of Slide Rooms: 4
- Awning Size (ft): 9′
- Water Heater: 10 Gallon (6 Gallon Rapid Recovery)
- Furnace: Two 20,000 BTU
- Fireplace: 5,000 BTU
- Whisper Quiet A/C: Three 15,000 BTU
- Refrigerator: 20.7 CU
- Microwave: 1.6 CU
- Electric: 50 Amp Service
- Converter: 75 Amp
- Inverter: 2000 Watt
- King Bed Size: 72″ x 80″
- Generator Prep: Optional
- GVWR (lbs) 24,000
- Est UVW 19,800
- Est Hitch Weight 4,700
- Exterior Length: 43′ 10″
- Exterior Height w/AC(ft): 13′ 6″
- Exterior Width W/Awning (inches): 111″
- Fresh Tank Capacity (gal): 100
- Black Tank Capacity (gal): 40
- Gray Tank Capacity (gal): 40 x 2
- L.P. Gas Capacity (lbs): 80
- Mor/Ryde Independent Suspension (lbs): 8000 x 3
- Kodiak Automotive Disc Brakes
- Goodyear H-Rated Tires (inches): 17.5″
- Wall Construction: 3" Super Composite welded aluminum cage walls with 2.5 graphite infused closed cell insulation
- Floor - 3" thick welded insulated aluminum cage construction with tung and grove 5/8" plywood. Hand laid vinyl tiling.
- Number of Slide Rooms: 4
- Awning Size (ft): 9′
- Water Heater: 10 Gallon (6 Gallon Rapid Recovery)
- Furnace: Two 20,000 BTU
- Fireplace: 5,000 BTU
- Whisper Quiet A/C: Three 15,000 BTU
- Refrigerator: 20.7 CU
- Microwave: 1.6 CU
- Electric: 50 Amp Service
- Converter: 75 Amp
- Inverter: 2000 Watt
- King Bed Size: 72″ x 80″
- Generator Prep: Optional
- GVWR (lbs) 24,000
- Est UVW 20,000
- Est Hitch Weight 4,800
- Exterior Length: 43′ 2″
- Exterior Height w/AC(ft): 13′ 6″
- Exterior Width W/Awning (inches): 111″
- Fresh Tank Capacity (gal): 100
- Black Tank Capacity (gal): 40
- Gray Tank Capacity (gal): 40 x 2
- L.P. Gas Capacity (lbs): 80
- Mor/Ryde Independent Suspension (lbs): 8000 x 3
- Kodiak Automotive Disc Brakes
- Goodyear H-Rated Tires (inches): 17.5″
- Wall Construction: 3" Super Composite welded aluminum cage walls with 2.5 graphite infused closed cell insulation
- Floor - 3" thick welded insulated aluminum cage construction with tung and grove 5/8" plywood. Hand laid vinyl tiling.
- Number of Slide Rooms: 4
- Awning Size (ft): 9′
- Water Heater: 10 Gallon (6 Gallon Rapid Recovery)
- Furnace: Two 20,000 BTU
- Fireplace: 5,000 BTU
- Whisper Quiet A/C: Three 15,000 BTU
- Refrigerator: 20.7 CU
- Microwave: 1.6 CU
- Electric: 50 Amp Service
- Converter: 75 Amp
- Inverter: 2000 Watt
- King Bed Size: 72″ x 80″
- Generator Prep: Optional
- GVWR (lbs) 24,000
- Est UVW 21,700
- Est Hitch Weight 4,900
- Exterior Length: 44′ 11″
- Exterior Height w/AC(ft): 13′ 6″
- Exterior Width W/Awning (inches): 111″
- Fresh Tank Capacity (gal): 100
- Black Tank Capacity (gal): 80
- Gray Tank Capacity (gal): 40 x 2
- L.P. Gas Capacity (lbs): 80
- Mor/Ryde Independent Suspension (lbs): 8000 x 3
- Kodiak Automotive Disc Brakes
- Goodyear H-Rated Tires (inches): 17.5″
- Wall Construction: 3" Super Composite welded aluminum cage walls with 2.5 graphite infused closed cell insulation
- Floor - 3" thick welded insulated aluminum cage construction with tung and grove 5/8" plywood. Hand laid vinyl tiling.
- Number of Slide Rooms: 6
- Water Heater: 10 Gallon (6 Gallon Rapid Recovery)
- Furnace: Two 20,000 BTU
- Fireplace: 5,000 BTU
- Whisper Quiet A/C: Three 15,000 BTU
- Refrigerator: 20.7 CU
- Microwave: 1.6 CU
- Electric: 50 Amp Service
- Converter: 75 Amp
- Inverter: 2000 Watt
- King Bed Size: 72″ x 80″
- Generator Prep: Optional
